DuckDB Transformation

• Creating a DuckDB Transformation
• Configuration
  • DuckDB Version
• Block-Based Orchestration
• Sync Actions
• Dynamic Backends
  • Auto-Resource Detection
• Parquet Format
• Infer Input Table Data Types
• Example
• Best Practices
  • Semicolons Between Statements
  • Case Sensitivity
  • Optimizing SQL Queries
  • DuckDB SQL Extensions
  • Working With Data Types
  • Memory Management for Large Datasets
  • Modular Transformations
  • What DuckDB Is Not
  • Real-World Example: CRM Data Transformation
• When to Use DuckDB vs. Snowflake
• Migrating from Snowflake to DuckDB

DuckDB is an in-process analytical database designed for fast SQL analytics. It brings several advantages to Keboola transformations:

• In-process execution — no external database server needed
• Columnar storage — optimized for analytical queries
• Block-based orchestration with automatic dependency analysis
• Parallel execution of independent scripts within blocks
• Cost-effective alternative to cloud data warehouses for small to medium datasets
• Rich SQL dialect with modern quality-of-life extensions

Note: DuckDB Transformation is currently in BETA. Breaking changes may occur.

Creating a DuckDB Transformation

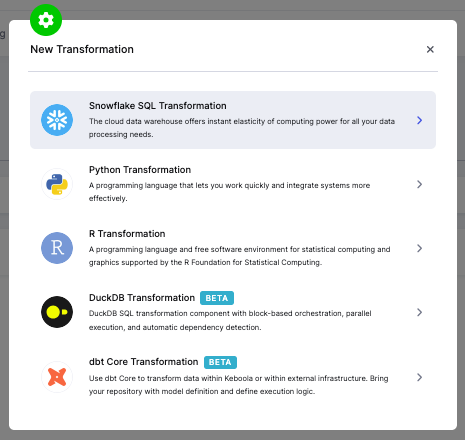

To create a new DuckDB transformation, click New Transformation in the Transformations section and select DuckDB Transformation.

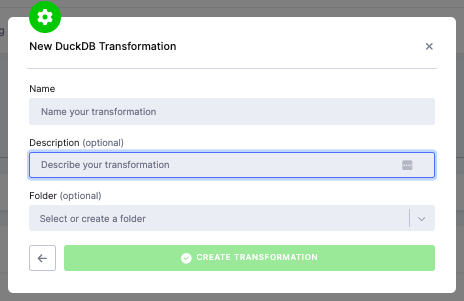

Name your transformation, optionally add a description and folder, and click Create Transformation.

Configuration

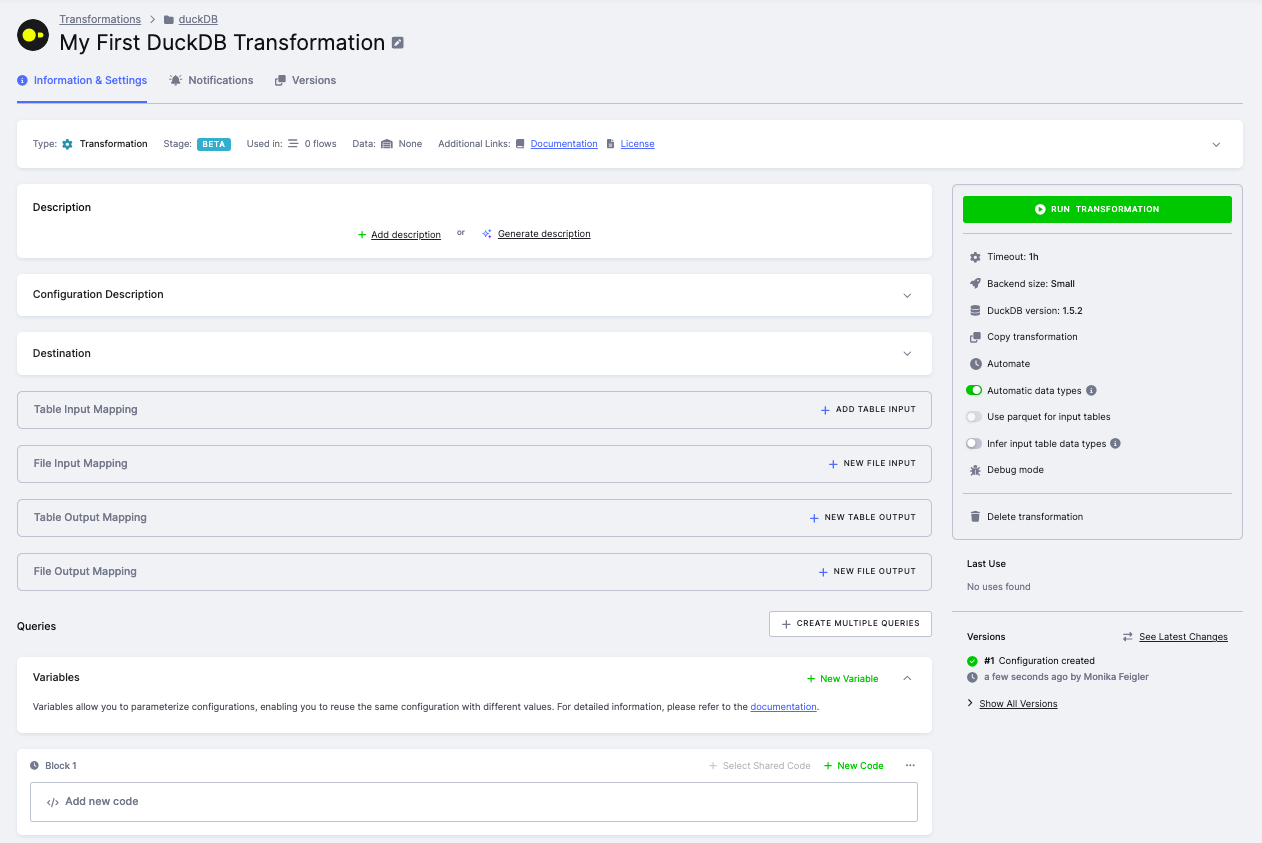

The configuration page allows you to set up input/output mappings, write SQL queries, and configure transformation settings.

On the right side panel, you can configure:

• Timeout — maximum execution time (default: 1 hour)
• Backend size — amount of memory allocated for the transformation (see Dynamic Backends)
• DuckDB version — select which DuckDB version to use (see DuckDB Version)
• Automatic data types — automatically assign data types to output tables
• Use parquet for input tables — use Parquet format instead of CSV for input data (see Parquet Format)
• Infer input table data types — infer data types from input tables (see Infer Input Table Data Types)
• Debug mode — enable debug logging for troubleshooting

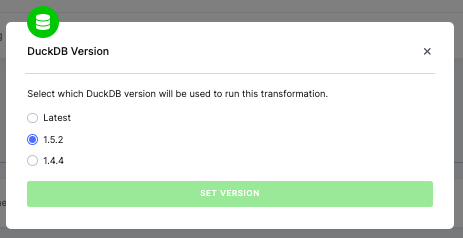

DuckDB Version

You can select the DuckDB version used to run the transformation. Use latest (default) to always run on the most recent supported version, or pin to a specific version (e.g., 1.5.2, 1.4.4) for stability. Each supported version runs in its own isolated environment.

Block-Based Orchestration

DuckDB transformations use block-based orchestration for organizing and executing SQL code:

• Blocks are executed sequentially (one after another).
• Scripts (code pieces) within a block are executed in parallel when they have no dependencies on each other.
• The system uses SQLGlot to automatically analyze SQL and build a DAG (Directed Acyclic Graph) of dependencies.
• Execution order is automatically optimized based on the dependency analysis.

This means you can organize your transformation into logical blocks and let the system handle parallel execution where possible.

Sync Actions

DuckDB transformations provide four sync actions for debugging and visualization without running the full transformation:

• Syntax check (syntax_check) — validates your SQL syntax without executing any queries. Useful for catching errors before running the transformation.
• Lineage visualization (lineage_visualization) — generates a markdown diagram of data dependencies, showing how tables flow through your transformation.
• Execution plan visualization (execution_plan_visualization) — shows the planned execution order with blocks and batches, illustrating how the automatic DAG organizes your queries.
• Expected input tables (expected_input_tables) — displays the list of input tables that the transformation expects based on the SQL analysis.

These actions are available from the transformation configuration page and are helpful for understanding and debugging complex transformations.

Dynamic Backends

You can change the backend size to allocate more memory for your transformation. The following sizes are available:

Start with the Small backend and scale up as needed based on your dataset size and query complexity.

Note: Dynamic backends are not available if you are on the Free Plan (Pay As You Go).

Auto-Resource Detection

DuckDB automatically detects the available CPU and memory resources. You can also manually configure resource limits using the threads and max_memory_mb parameters in the transformation configuration.

Parquet Format

By default, input tables are loaded as CSV files. You can enable Parquet format for significantly better performance, especially with larger datasets.

Advantages of Parquet:

• Much faster processing than CSV
• Lower memory usage
• Columnar storage optimized for analytical queries

Recommendation: Always use Parquet for datasets larger than 1 GB.

To enable Parquet, toggle the Use parquet for input tables option in the transformation settings.

Infer Input Table Data Types

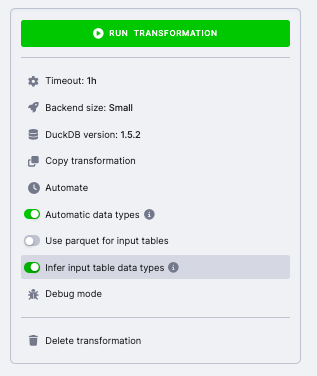

When working with non-typed (string-based) Storage tables, you can enable the Infer input table data types option. This feature instructs DuckDB to infer the actual data types of the input columns, so you can work with numeric, date, and boolean types directly in your SQL queries without manual casting.

Why is this useful?

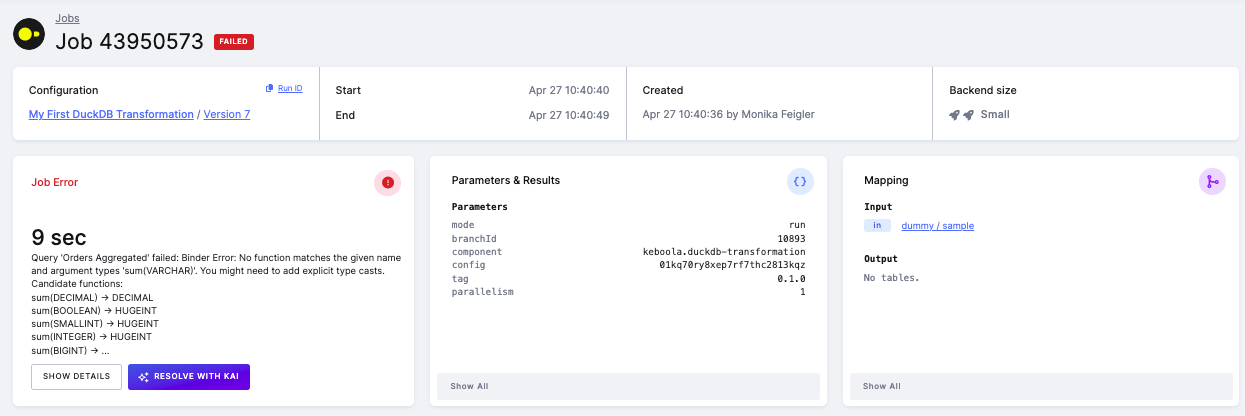

Keboola Storage tables can be non-typed (all columns stored as VARCHAR). Without type inference enabled, all values in input tables are treated as strings, and functions like SUM() will fail because they expect numeric types.

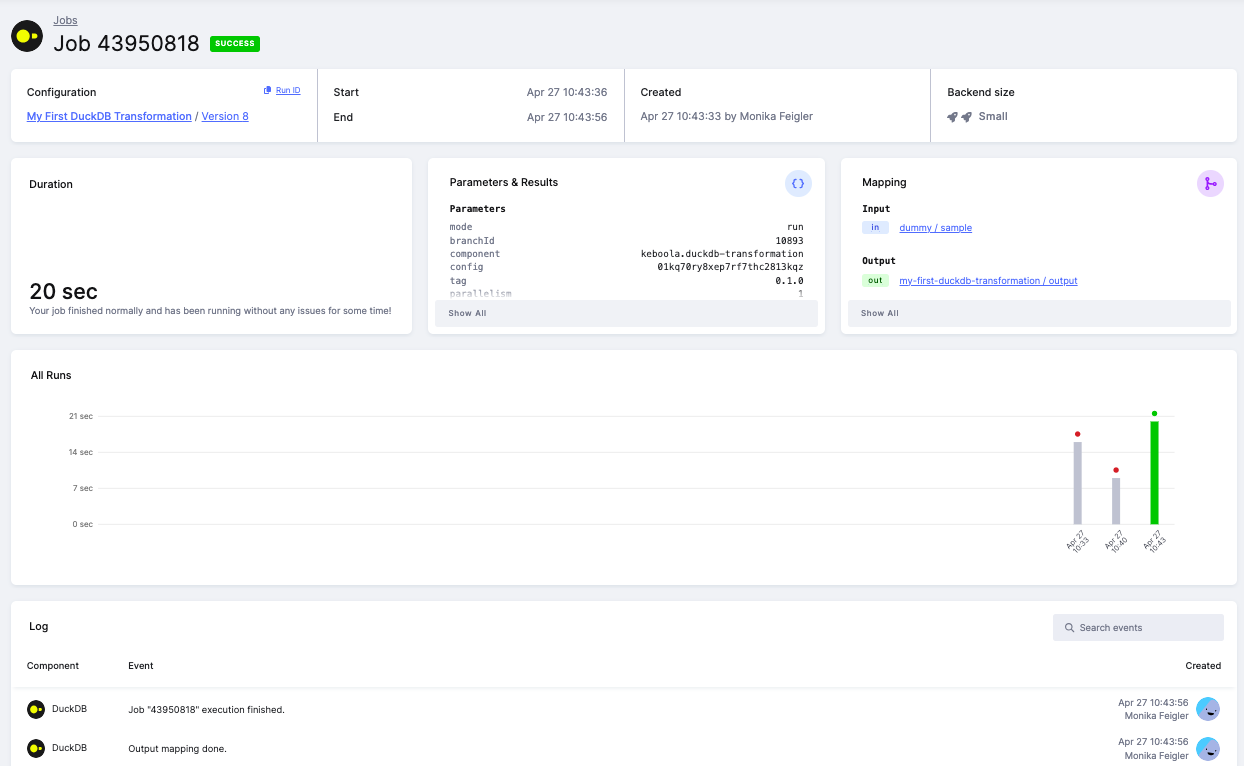

With Infer input table data types enabled, DuckDB automatically detects the correct types (e.g., INTEGER, FLOAT, DATE), so aggregate functions and type-specific operations work as expected.

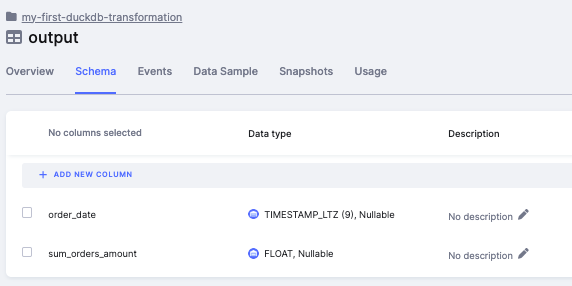

The output table then contains properly typed columns:

Example

To create a simple DuckDB transformation, follow these steps:

• Create a table in Storage by uploading the sample CSV file.
• Create an input mapping from that table, setting its destination to sample (as expected by the DuckDB script).
• Create an output mapping, setting its destination to a new table in your Storage.

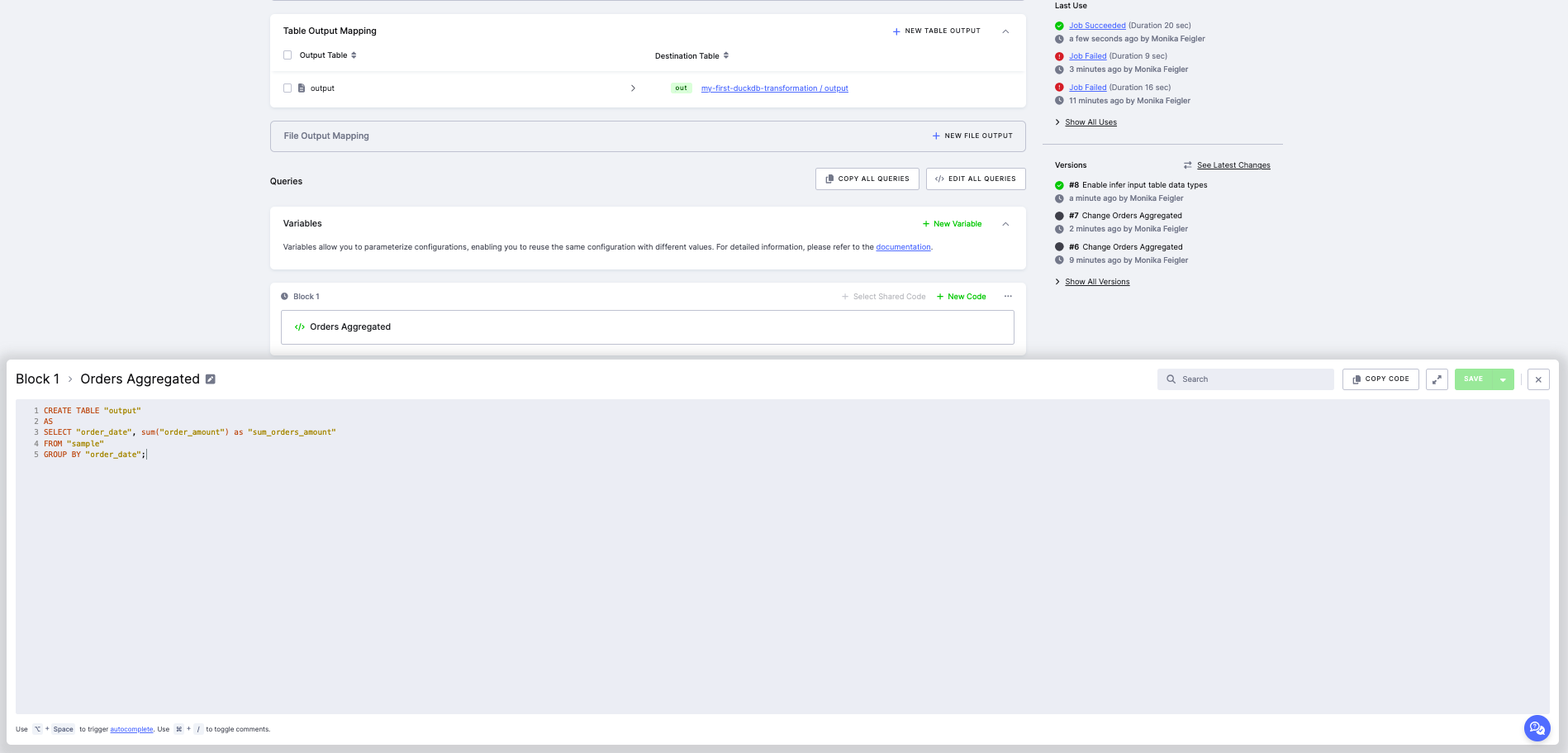

• Copy & paste the below script into the transformation code.
• Save and run the transformation.

CREATE TABLE "output" AS
SELECT "order_date", SUM("order_amount") AS "sum_orders_amount"
FROM "sample"
GROUP BY "order_date";

You can organize the script into blocks.

Best Practices

Semicolons Between Statements

Each SQL statement in a DuckDB transformation must be terminated with a semicolon (;). If you have multiple statements in a single script, make sure they are properly separated:

-- Correct: each statement ends with a semicolon
CREATE TABLE "output_a" AS SELECT * FROM "input_a";

CREATE TABLE "output_b" AS SELECT * FROM "input_b";

Missing semicolons will cause syntax errors.

Case Sensitivity

DuckDB handles identifier case differently than Snowflake:

Table names:

• Unquoted table names are converted to lowercase (e.g., SELECT * FROM MyTable references mytable).
• Quoted table names are case-sensitive (e.g., SELECT * FROM "MyTable" references exactly MyTable).

Column names:

• Columns are always case-sensitive regardless of quoting (e.g., SELECT columnName and SELECT ColumnName refer to different columns).

This is different from Snowflake, where unquoted identifiers become uppercase.

Best practices:

• Use consistent casing for table and column names.
• When referencing tables with mixed case or special characters, always use quotes: "TaBlE-stage".
• Be aware that input table names are typically lowercase unless explicitly quoted.

Optimizing SQL Queries

Filter and project early — apply WHERE clauses as close to the source table as possible and select only the columns you need. This reduces the amount of data DuckDB needs to scan.

-- Good: filter and project at the source
SELECT id, name, price
FROM products
WHERE category = 'electronics' AND price > 100;

Use EXPLAIN for performance analysis — prefix your query with EXPLAIN to see the execution plan and identify expensive operations.

EXPLAIN SELECT product_category, SUM(price) AS total_revenue
FROM sales
WHERE sale_date >= '2023-01-01'
GROUP BY product_category
ORDER BY total_revenue DESC;

DuckDB SQL Extensions

DuckDB provides several quality-of-life SQL extensions that simplify common patterns:

GROUP BY ALL — automatically groups by all non-aggregated columns:

SELECT product, category, SUM(sales)
FROM orders
GROUP BY ALL;

EXCLUDE — select all columns except specific ones:

SELECT * EXCLUDE (password, ssn, credit_card)
FROM users;

ASOF JOIN — useful for time-series data where timestamps do not match exactly:

SELECT
    s.player_id,
    s.score,
    s.score_time,
    w.temperature,
    w.conditions
FROM scores s
ASOF JOIN weather w
ON s.score_time >= w.timestamp;

SUMMARIZE — quick data profiling with min, max, null percentage, and unique counts:

SUMMARIZE SELECT * FROM my_table;

Working With Data Types

Keboola Storage tables store data in character types by default. When Infer input table data types is disabled, all columns are loaded as VARCHAR. You need to cast values explicitly:

CREATE TABLE "result" AS
SELECT
    CAST("amount" AS DECIMAL) AS "amount",
    CAST("created_at" AS TIMESTAMP) AS "created_at"
FROM "source";

When Infer input table data types is enabled, DuckDB automatically infers the correct types and you can use them directly.

Memory Management for Large Datasets

For datasets larger than 10 GB, configure DuckDB to use on-disk processing with PRAGMA settings:

PRAGMA memory_limit='8GB';
PRAGMA temp_directory='/tmp/duckdb_temp';
PRAGMA threads=4;
PRAGMA enable_object_cache;

Modular Transformations

• Split complex transformations into smaller steps, each producing one output table.
• Use consistent naming conventions for output tables (e.g., stg_customers, fact_orders, dim_products).
• Document complex business logic directly in the SQL code.

What DuckDB Is Not

DuckDB is an OLAP (Online Analytical Processing) database optimized for SELECT statements and analytical queries. Avoid workflows with frequent INSERT and UPDATE operations. For transactional workloads, use a different backend such as Snowflake.

Real-World Example: CRM Data Transformation

The following example shows a typical DuckDB transformation processing CRM data (e.g., from HubSpot). It demonstrates common patterns: TRY_CAST for safe type conversion, NULLIF for handling empty strings, and :: for type casting.

/* companies */
CREATE TABLE "out_companies" AS
SELECT
  "companyId",
  "name",
  "website",
  TRY_CAST(NULLIF("createdate", '') AS DATE) AS "createdate",
  "isDeleted"::BOOLEAN AS "isDeleted"
FROM "companies";

/* contacts */
CREATE TABLE "out_contacts" AS
SELECT
  "canonical_vid",
  "firstname",
  "lastname",
  "email",
  TRY_CAST(NULLIF("createdate", '') AS DATE) AS "createdate",
  "hs_analytics_source" AS "email_source",
  "associatedcompanyid",
  "lifecyclestage"
FROM "contacts";

/* deals */
CREATE TABLE "out_deals" AS
SELECT
  "dealId",
  "isDeleted"::BOOLEAN AS "isDeleted",
  "dealname",
  TRY_CAST(NULLIF("createdate", '') AS DATE) AS "createdate",
  TRY_CAST(NULLIF("closedate", '') AS DATE) AS "closedate",
  "dealtype",
  TRY_CAST(NULLIF("amount", '') AS DOUBLE) AS "amount",
  "pipeline",
  "dealstage",
  "hubspot_owner_id",
  "hs_analytics_source"
FROM "deals";

/* pipeline stages */
CREATE TABLE "out_stages" AS
SELECT
  "stageId",
  "label",
  TRY_CAST(NULLIF("displayOrder", '') AS INT) AS "displayOrder",
  TRY_CAST(NULLIF("probability", '') AS DOUBLE) AS "probability",
  "closedWon"::BOOLEAN AS "closedWon"
FROM "pipeline_stages";

Key patterns used:

• TRY_CAST(NULLIF("column", '') AS TYPE) — safely converts empty strings to NULL before casting. This avoids errors when the source data contains empty values.
• "column"::BOOLEAN — shorthand type cast syntax.
• Each statement ends with a semicolon (;) — required when multiple statements are in a single script.

When to Use DuckDB vs. Snowflake

Choose DuckDB for:

• Ad-hoc analysis and small to medium datasets
• Rapid prototyping of transformations
• Projects with limited budgets
• Datasets under a few terabytes
• Development and testing

Choose Snowflake for:

• Very large datasets (TB+)
• Complex enterprise workloads
• Sharing warehouses across multiple processes
• Maximum scalability
• Advanced Snowflake-specific features

Migrating from Snowflake to DuckDB

If you are migrating existing Snowflake transformations to DuckDB, see the detailed Snowflake to DuckDB Migration Guide.
