Array Splitting

Array splitting is what you do if you have a list of values in a single cell delimited by a character (a comma, semi-colon, etc.), and want each of those delimited values in a separate row.

The following example will take a table like

id	name
1	first,second,third
2	fourth,fifth,sixth

and produce a table like

globalId	globalPos	globalVal
1	1	first
1	2	second
1	3	third
2	1	fourth
2	2	fifth
2	3	sixth

Prepare

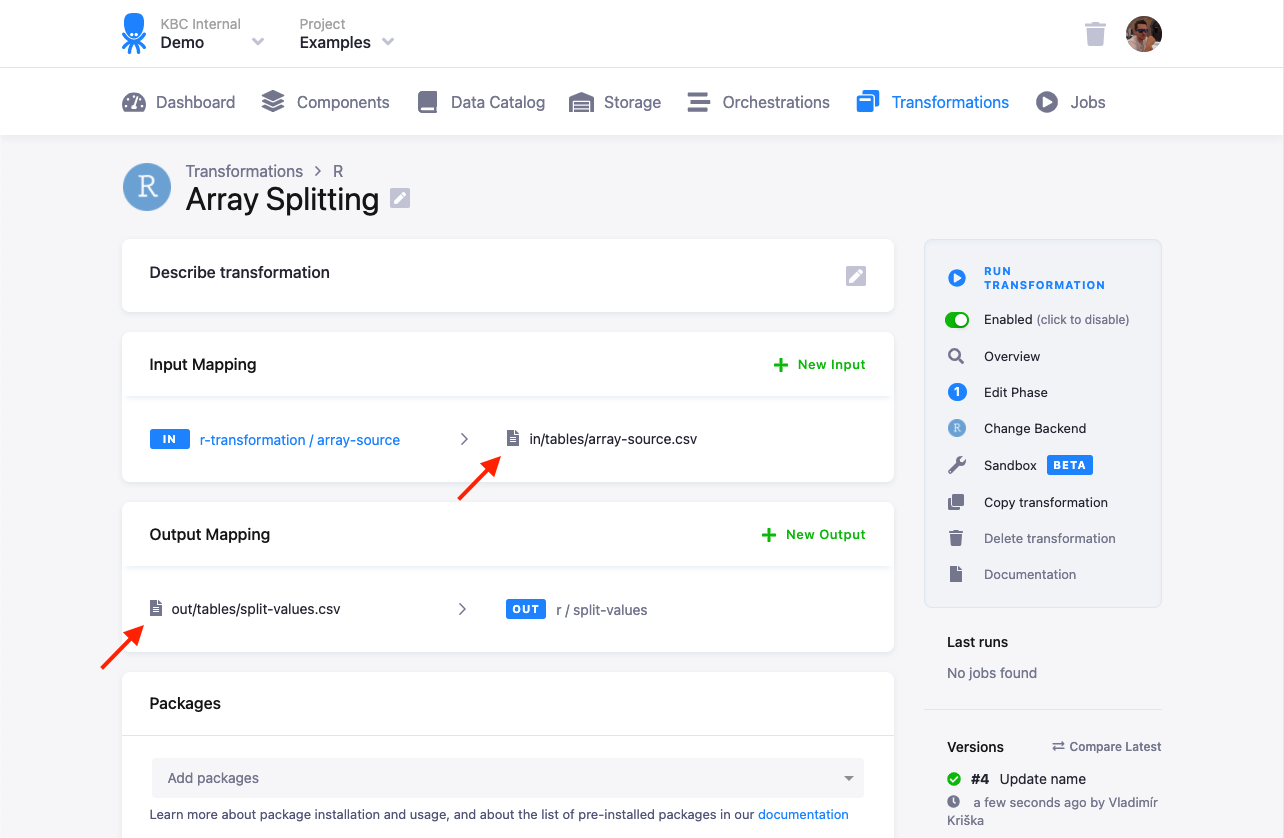

Use the sample table shown above and import it into your Storage. Then set the input and output mapping for your transformation.

Use the Script

The following script will take each row of the source table, and split the column whose name is specified in the splitCol variable by the character specified in the splitChar variable. The resulting values will be put together with their ID specified in the idCol variable, and they will also be assigned a new sequential ID in the globalPos column.

splitChar = ','
splitCol = 'name'
idCol = 'id'

data <- read.csv(file = "in/tables/array-source.csv")
data <- data.frame(data)

# helper function to generate positions for each array

genPos = function(array){
  array <- getVals(array)
  return(match(array,array))
}

# helper function to grab all the individual values

getVals = function(array){
  array <- toString(array)
  array <- unlist(strsplit(array, splitChar, fixed = FALSE))
  array <- array[array != ""]
  return(array)
}

# rerun these three lines before the for loop, if not the first time

globalId <- c()
globalPos <- c()
globalVal <- c()

# parse through all data and do the actual formatting

for (i in 1:length(data[[splitCol]])) {
  posi <- genPos(data[[splitCol]][i])
  idi <- c(rep(data[[idCol]][i], length(posi)))
  vali <- getVals(data[[splitCol]][i])
  globalId <- c(globalId, idi)
  globalPos <- c(globalPos, posi)
  globalVal <- c(globalVal, vali)
}

processedData <- data.frame(cbind(globalId, globalPos, globalVal))
write.csv(processedData, file = "out/tables/split-values.csv", row.names = FALSE)

When you run the transformation, you will obtain a table with three columns:

globalId – ID of each row in the original table (the name of the id column is in the idCol variable),
globalPos – sequential ID of each value within the original row, and
globalVal – each value that has been split out of the original array column (the name of that column is specified in the splitCol variable).
